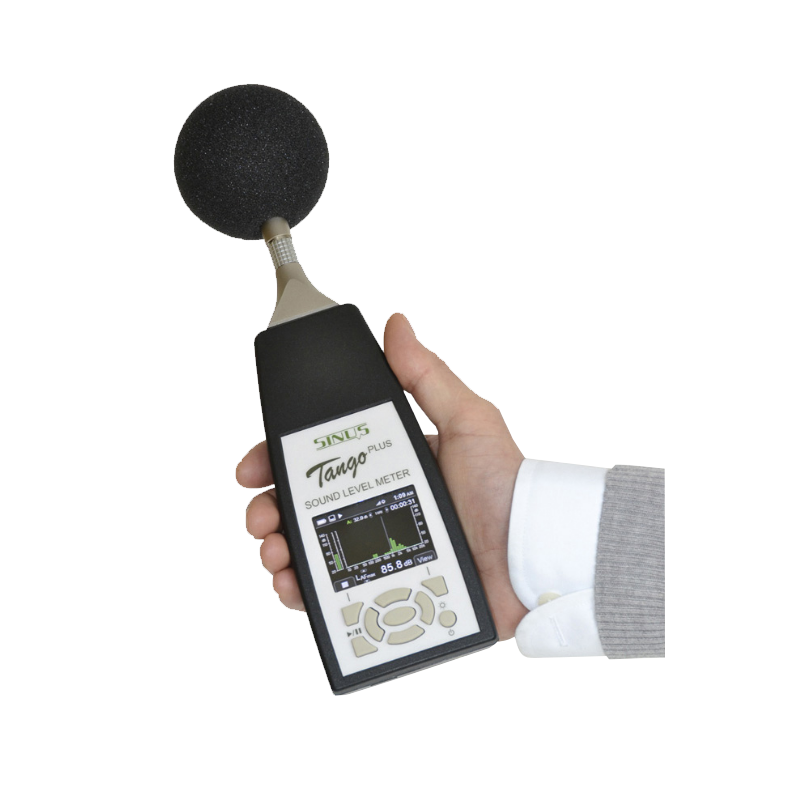

Class 1 Sound Level Meter with 1/1 and 1/3 Octave Analyser
Rp0,00
Termasuk pajak
Class 1 Sound Level Meter with 1/1 and 1/3 octave analyser + Sound Calibrator Model Tango Plus dari Sinus (Germany) alat ukur kebisingan dan uji Frekuensi suara dilengkapi dengan Sound Calibrator sebagai internal kalibrasi sebelum alat dipergunakan, Type 1 Sound Level Meter range pengukuran antara 25-140dB (LAeq), 60-143dB (Lcpeak) dilengkapi pengukuran frequensi 1/1 dan 1/3 Octave Analyzer. Distributor dan Penjual Sound Level Meter Merek Sinus dari Germany di Indonesia
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Class 1 Sound Level Meter with 1/1 and 1/3 octave analyser
Type : Tango Plus (Sinus - Germany)
Specification :
| ▪ | Accuracy | : | Class 1 according to IEC 61672 and IEC 61260 | |
| ▪ | Type approval | : | PTB approval applied for Meas. values | |
| : | Sound pressure level LAF, LAS, LCF, LCS | |||
| : | 1/1 and 1/3 octave spectra (A, C, Z) | |||
| : | Maximum sound level LAFmax, LASmax, LCFmax, LAImax | |||
| : | Minimum sound level LAFmin, LASmin, LCFmin | |||
| : | Equivalent sound pressure level LAeq, LCeq | |||
| : | Peak value Lcpeak, Sound Dose LAE | |||
| : | Taktmaximal level LAFT, LAFTeq | |||
| : | 3x Statistical values LAFn (freely selectable) | |||
| : | 3x LCpeak_exceedance (freely selectable) | |||
| : | LCeq - LAeq, LAFTeq - LAeq | |||
| ▪ | Freq. weightings | : | A + C | |
| ▪ | Time weightings | : | Fast, Slow, Impulse, Peak | |
| ▪ | Ranges | : | 25 to 140 dB (LAeq), 60 to 143 dB (Lcpeak) | |
| ▪ | Resolution | : | 0.1 dB | |
| ▪ | Display | : | color TFT 320 x 240 | |
| ▪ | Microphone | : | 1/2" microphone MK255, 50 mV/Pa | |
|
Connector | : | LEMO7 1B (for Micro Extension Cable) | |
| : | RS232 special connector (for printer) | |||
| ▪ | Calibration | : | Automatic with external 94 dB calibrator | |
| ▪ | Interface | : | USB 2.0, RS232 printer port | |
| ▪ | Batteries | : | 2x AA (1.2 - 1.5V) Operating time > 40 h | |
| ▪ | Dimensions | : | 190x70x32mm /Weight 250 g (including batteries) | |
| ▪ | Scope of delivery | : | Sound level meter, windscreen and sound calibrator | |
| : | 1.5m USB interface cable | |||
| : | mains power supply | |||
| : | Tango-Utilities software | |||
| : | User Manual and Carrying case |
