Datalogging Portable TSS Meter | IPM-PSSL-20SS dari Insite IG

Rp0,00

Datalogging Portable TSS Meter (Total Suspended Solid) Type IPM-PSSL-20SS dari Insite IG yang digunakan untuk mengukur nilai konsentrasi padatan tersuspensi total yand dapat merekam hasil pengukuran dan dapat di transfer ke PC melalui Kabel RS-232, TSS Meter IPM-PSS-20SS dengan jangakuan ukur mulai dari 0-1500 mg/L panjang kabel sekitar 6 meter dan dilengkapi gulungan kabel sensor

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

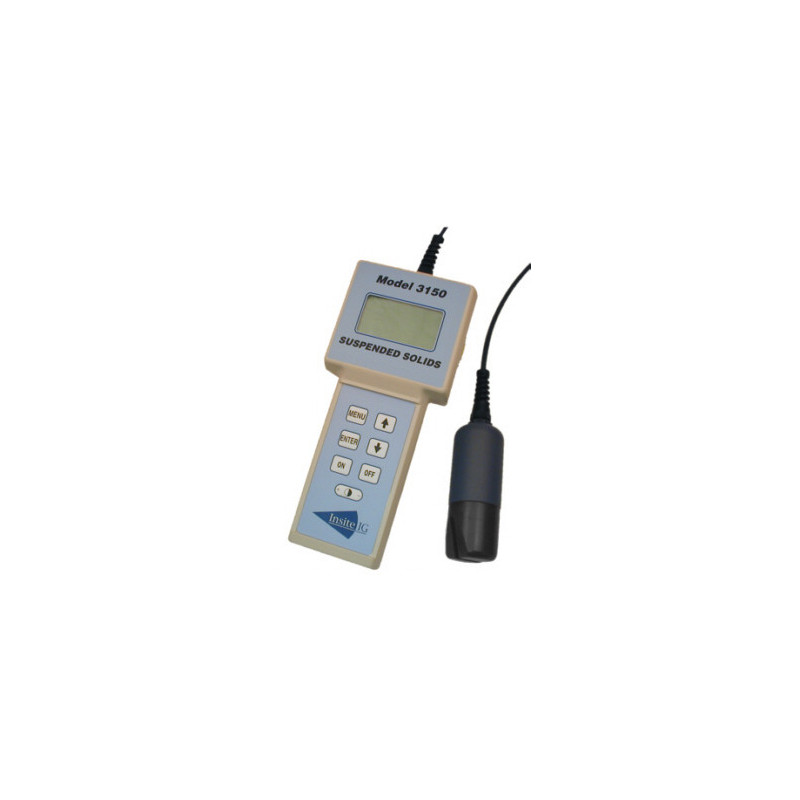

Datalogging Portable TSS Meter

Type : IPM-PSSL-20SS dari Insite IG (USA)

Specification :

▪	Measuring range	:	0 - 1500 mg/l
▪	Accuracy
	PSS	:	5% of reading or ± 100 mg/l
	PSSL	:	5% of reading or ± 2 mg/l
▪	Repeatability	:	± 1% of the reading or
			± 2 mg/l wichever is greater
▪	Respon time	:	95% in under 60 second
▪	Temperature Range	:	o to 65 degrees C
▪	Sensor Check	:	Automatic self diagnostics
▪	Output	:	RS-232 serial
▪	Memory Backup	:	Yes
▪	Display	:	LCD graphic display with UV protection
		:	Contrast adjustment via keypad
		:	on demand backlighting
▪	Sensor Cable length	:	20 feet
▪	Ambient temperature	:	-40 ˚C to 55 ˚C
▪	Ambient Humidity	:	0 to 100 %
▪	Enclosure Rating	:	NEMA 4X
▪	Wetted Materials	:	Epoxy and polyurethane
▪	Maximum Pressure	:	100 psi
▪	Complete Unit	:	Main Unit, Sensor, Battery Charger
		:	Mil spec quic disconnet conector,
		:	computer download kit
		:	250 poin onboard data logger
