Portable Vibration Meter VM-24 dari MMF-Germany alat ukur getaran mesin terutama untuk kebutuhan laboratorium dan kebutuhan industri, VM24 Vibration Meter dapat juga sebagai pemantauan kondisi mesin sesuai ISO 20816 dan sebagai alat pengontrol kualitas mesin. Sensor Vibration Meter berupa accelerometer type geser presisi berbasis magnet yang dapat menempel pada baja sebagai object pengukuran, Vibration Meter VM-24 mampu menyimpan data hingga 16.000 pengukuran
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)

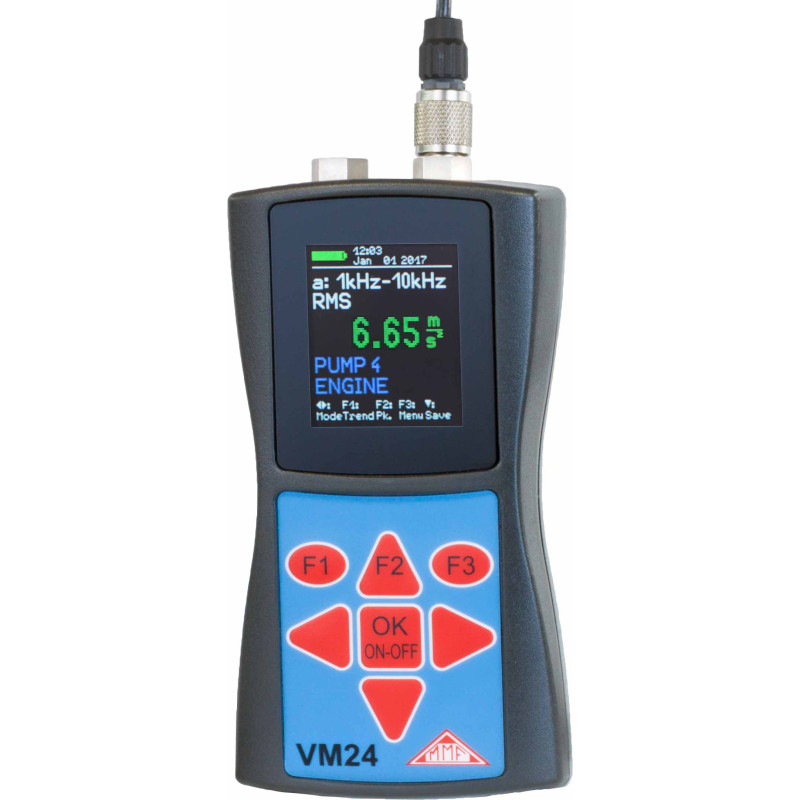

Portable Vibration Meter
Type : VM-24 (Germany)
Specification :
| Measurement | : | vibration acceleration, velocity and displacement | |
| 1 Main Unit | |||
| ▪ | Accelerometer | : | 0,1 - 240 m/s²; 0,2 Hz - 10 kHz; |
| : | 3 Hz - 1 kHz, 1 kHz - 10 kHz | ||
| ▪ | Velocity | : | 0,1 - 1000 mm/s; 2 - 300 Hz; 10 - 1000 Hz |
| ▪ | Displacement | : | 0,01 - 60 mm; 2 - 300 Hz |
| ▪ | Bearing Diagnosis Coefficient | : | 1 - 10 kHz; with memory for 1600 rms/peak start values |
| ▪ | Accuracy Vibration | : | ± 5 % ± 2 Digits |
| ▪ | Data Memory | : | 16000 values; USB interface optional PC software for data |
| ▪ | Display | : | OLED graphical display; colored; 128 x 160 pixels |
| ▪ | Power Supply | : | 3 x LR03 / HR03 / AAA 8 - 12 h; USB supply |
| ▪ | Dimension/weight | : | 125mm x 65mm x27mm; 140g with battre and without sensor |
| 2 Accelerometer | |||
| ▪ | Type | : | Piezoelectric shear accelerometer with low-power |
| : | IEPE output; M12 connector;integral magnet, | ||
| : | VMID read contact in base | ||
| ▪ | Sensitive | : | 3,5 mV/ms-2 |
| ▪ | Transverse sensitivity | : | < 5 % |
| ▪ | Dimensions, weight | : | Ø 21, Height 34mm (without connector 53 g) |
| ▪ | Accessories | : | Vibration sensor |
| : | USB Cable | ||
| : | Instruction Manual | ||
| : | Plastic Case | ||
