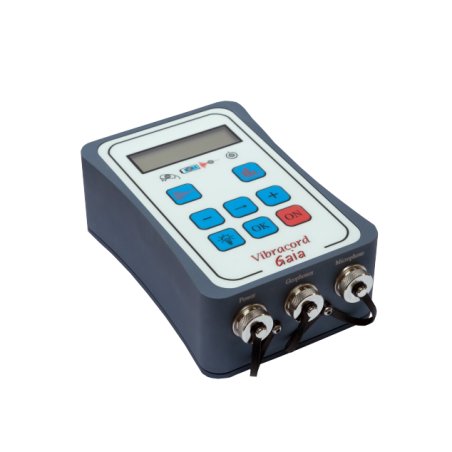

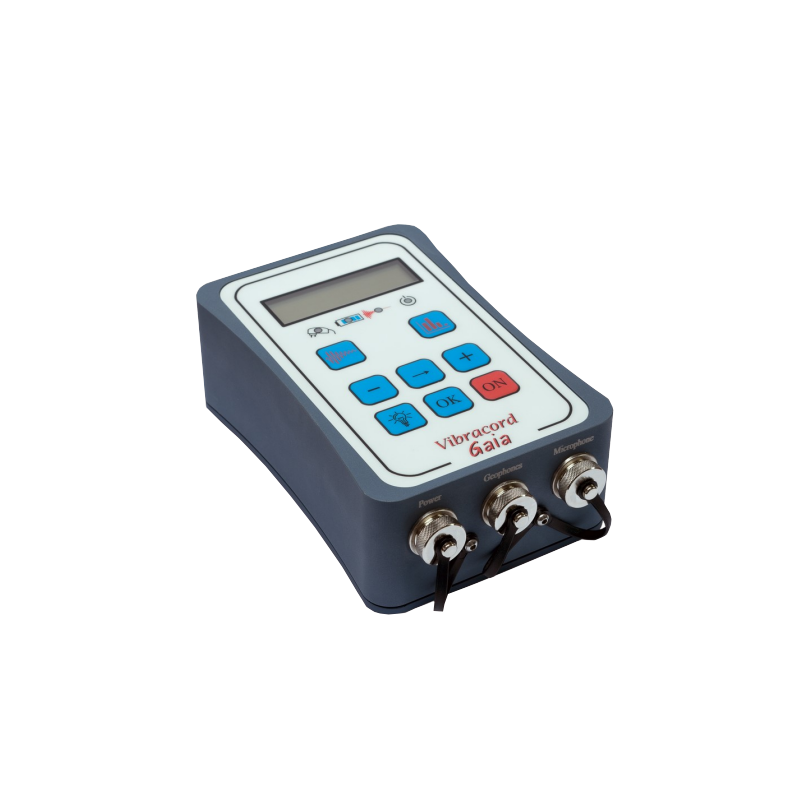

Blasting Vibration Monitor | Vibracord Gaia. 4 channel version (2-250 Hz)

Rp0,00

Termasuk pajak

Blasting Vibration Monitor Vibracord Gaia 4 Channel (2-250Hz & 1-315Hz) alat ukur getaran akibat ledakan Blasting Monitor adalah Alat Ukur Getaran yang diakibatkan oleh Ledakan Batuan untuk Tambang, Getaran akibat pemasangan tiang pancang bangunan yang mengakibatkan bangunan disekitarnya menjadi retak, Blasting Vibration Monitor sangat cocok dipergunakan untuk pekerjaan kontruksi, pertambangan, peledakan, pembongkaran atau pekerjaan lainnya yang menimbulkan getaran

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

Blasting Vibration Monitor

Type : Vibracord Gaia 4 Channel

Product : Vibraquipo (Spain)

Specification :

▪	Number of Channel	:	4 channel
▪	Sample rate	:	1024 SPS
▪	Frequency range	:	2 ~ 250 Hz (ISEE)
		:	1 ~ 315 Hz (din 45669-1)
▪	Trigger mode	:	Automatic
▪	FFT Calculation	:	Computer
▪	Data transfer modes	:	SD Card
▪	Data Visualization	:	Screen
▪	Screen	:	LCD 4 x 20 characters
▪	Keyboard	:	8 keys
▪	Data storage memory	:	1000 records
▪	Intenal power supply	:	Li-Ion rechargeable battery
▪	Dimensions	:	165 x 105 x 55 mm
▪	Weight (Without accessories)	:	0,85 kg
▪	Environmental	:	IP-65 (Equipment
		:	IP-68 (Geophone)
▪	Complete Unit	:
1	Recording unit
2	One three-axis bloks geophones
3	Three spikes for fixation
4	External power supply
5	Analysis program
6	User Manual
7	Certificate Calibration
8	Carrying case
9	1-315 Frequency range with one block of geophone
