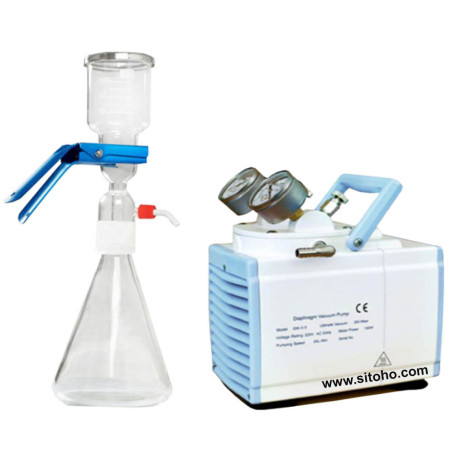

Vacum Filtration System 30L/min | M050A-3ML Glass Solvent Filter with Diaphragm Vacuum Pump

Rp0,00

Termasuk pajak

Vacuum Filtration System 30L/min, M050A-3ML terdiri Glass Solvent Filter with Diaphragm Vacuum Pump merupakan alat laboratorium untuk proses pemisahan zat padat pada cairan atau proses penyaringan. Vacuum Filtration Set menggunakan penyaringan dengan kertas saring diameter 47mm, Jual Vacuum Filtration Set / Glass Solvent Set siap pakai komplit dengan selang silicon, Distributor dan Penjual Vacuum Filtration Set di Indonesia

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

Vacuum Filtration System

Type : M050A-3L

Specification

Glass Solvent Filter
▪	Type	:	3001
▪	Branch	:	Single
▪	Funnel Size	:	300 ml
▪	Funnel Valve	:	Glass
▪	Support Screen	:	Pyrex Glass
▪	Membrane Filter (Diameter)	:	47 mm
▪	Screen Pore Size	:	10 µm
▪	Connection	:	Ground Joint
▪	Collection Bottle	:	1000 ml
▪	Working Temperature	:	under 121℃
Diaphragm Vacuum Pump
▪	Vacuum Pump Type	:	050A
▪	Speed of Evacuation (L/min)	:	30
▪	Ultimate Pressure Vacuum	:	≥0.08Mpa 200mbar
▪	Voltage Rating	:	230Vac 50Hz
▪	Motor Power (W)	:	160
▪	Inlet (mm)	:	Φ6
▪	Outlet (mm)	:	Φ6
▪	Pump Head	:	1
▪	Temp of body (℃）	:	<55
▪	Dimensions (LxBxH) (mm)	:	210x160x235
▪	Weight (Kgs)	:	10
▪	Diaphragm	:	NBR
▪	Valves	:	NBR
▪	Noise Level (DB)	:	<50
▪	Temperature of working (℃）	:	7 - 40
