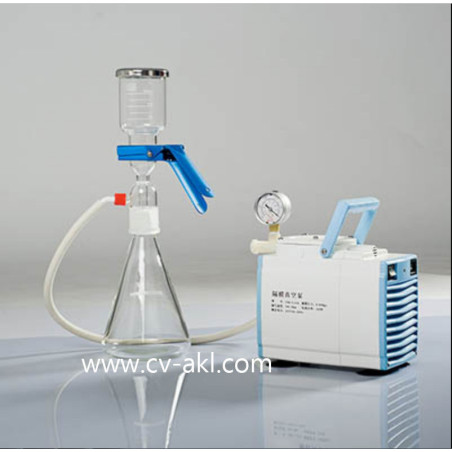

Vacuum Filtration System 20L/min | M033A-5ML Glass Solvent Filter with Diaphragm Vacuum Pump

Rp0,00

Termasuk pajak

Vacuum Filtration System 20L/min, M033A-5ML terdiri Glass Solvent Filter with Diaphragm Vacuum Pump, Glass Funnel 500ml (bagian atas) dan Collection Bottle 2000ml (bagian Bawah), Kecepatan Vacuum Pump 20L/min merupakan alat laboratorium untuk proses pemisahan zat padat pada cairan atau proses penyaringan. Vacuum Filtration Set menggunakan penyaringan dengan kertas saring diameter 47mm, Distributor dan Penjual Vacuum Filtration Set di Indonesia

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

Vacuum Filtration System

Type : M033A-5ML

Specification :

Glass Solvent Filter
▪	Type	:	5002
▪	Branch	:	Single
▪	Funnel Size	:	500 ml
▪	Funnel Valve	:	Glass
▪	Support Screen	:	Pyrex Glass
▪	Membrane Filter (Diameter)	:	47 mm
▪	Screen Pore Size	:	10 µm
▪	Connection	:	Ground Joint
▪	Collection Bottle	:	2000 ml
▪	Working Temperature	:	under 121℃
Diaphragm Vacuum Pump
▪	Vacuum Pump Type	:	033A
▪	Speed of Evacuation (L/min)	:	20
▪	Ultimate Pressure Vacuum	:	≥0.08Mpa 200mbar
▪	Voltage Rating	:	230Vac 50Hz
▪	Motor Power (W)	:	160
▪	Inlet (mm)	:	Φ6
▪	Outlet (mm)	:	Silencer
▪	Pump Head	:	1
▪	Temp of body (℃）	:	<55
▪	Dimensions (LxBxH) (mm)	:	210x120x235
▪	Weight (Kgs)	:	7.5
▪	Diaphragm	:	NBR
▪	Valves	:	NBR
▪	Noise Level (DB)	:	<50
▪	Temperature of working (℃）	:	7 - 40
