One Branch Vacuum Filtration System

Rp0,00

Termasuk pajak

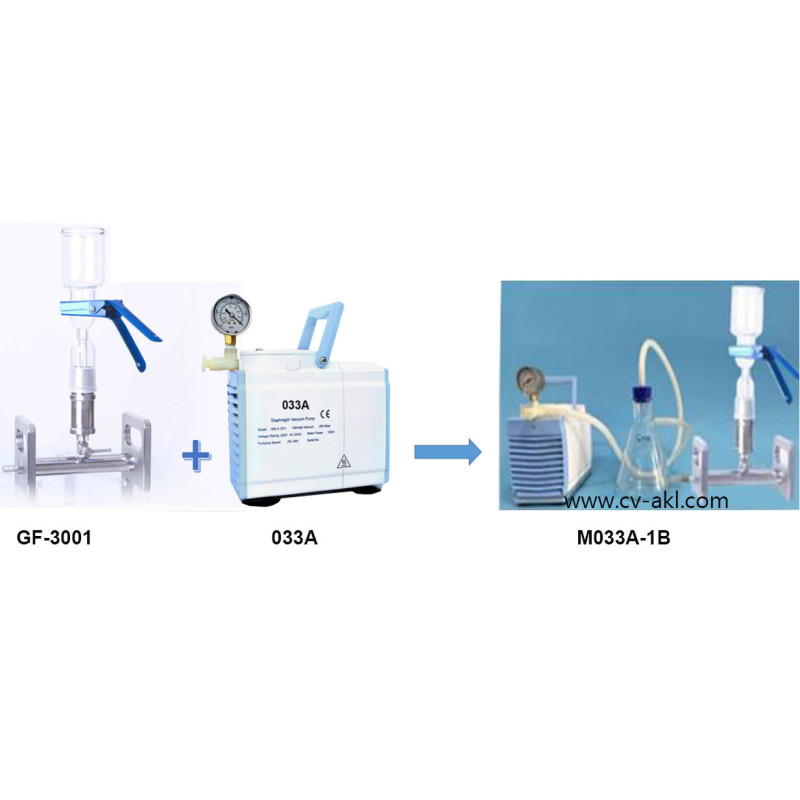

One Branch Vacuum Filtration System 20L/min, M033A-1B terdiri Glass Vacuum Filtration Manifold with Diaphragm Vacuum Pump, Glass Funnel 300ml (bagian atas) dan Collection Bottle 1000ml (bagian Bawah), Kecepatan Vacuum Pump 20L/min merupakan alat laboratorium untuk proses pemisahan zat padat pada cairan atau proses penyaringan. Vacuum Filtration Set menggunakan penyaringan dengan kertas saring diameter 47mm, Distributor dan Penjual Vacuum Filtration Set di Indonesia

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

One Branch Vacuum Filtration System

Type : M033A-1B

Specification

Glass Vacuum Filtration Manifold
▪	Type	GF3001
▪	Branch	One-branch
▪	Funnel Size	300 ml
▪	Funnel Valve	Glass
▪	Manifold Support	SS316L
▪	Support Screen	PTFE
▪	Membrane Filter (Diameter)	47 mm or 50 mm
▪	Screen Pore Size	20 µm
▪	Connection	Ground Joint
▪	Connection Bottle	1000 ml
▪	Working Temperature	under 180-200℃
Diaphragm Vacuum Pump
▪	Vacuum Pump Type	033A
▪	Speed of Evacuation (L/min)	20
▪	Ultimate Pressure Vacuum	≥0.08Mpa 200mbar
▪	Voltage Rating	230Vac 50Hz
▪	Motor Power (W)	160
▪	Inlet (mm)	Φ6
▪	Outlet (mm)	Silencer
▪	Pump Head	1
▪	Temp of body (℃）	<55
▪	Dimensions (LxBxH) (mm)	210x120x235
▪	Weight (Kgs)	7.5
▪	Diaphragm	NBR
▪	Valves	NBR
▪	Noise Level (DB)	<50
▪	Temperature of working (℃）	7 - 40
