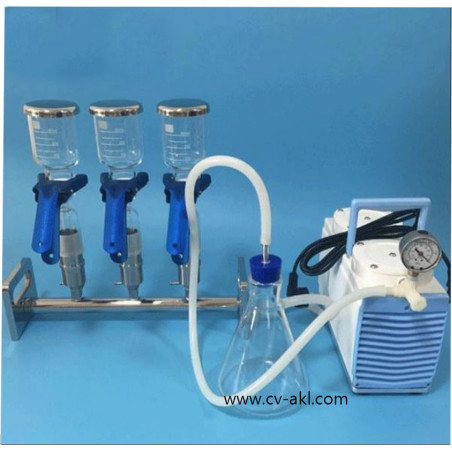

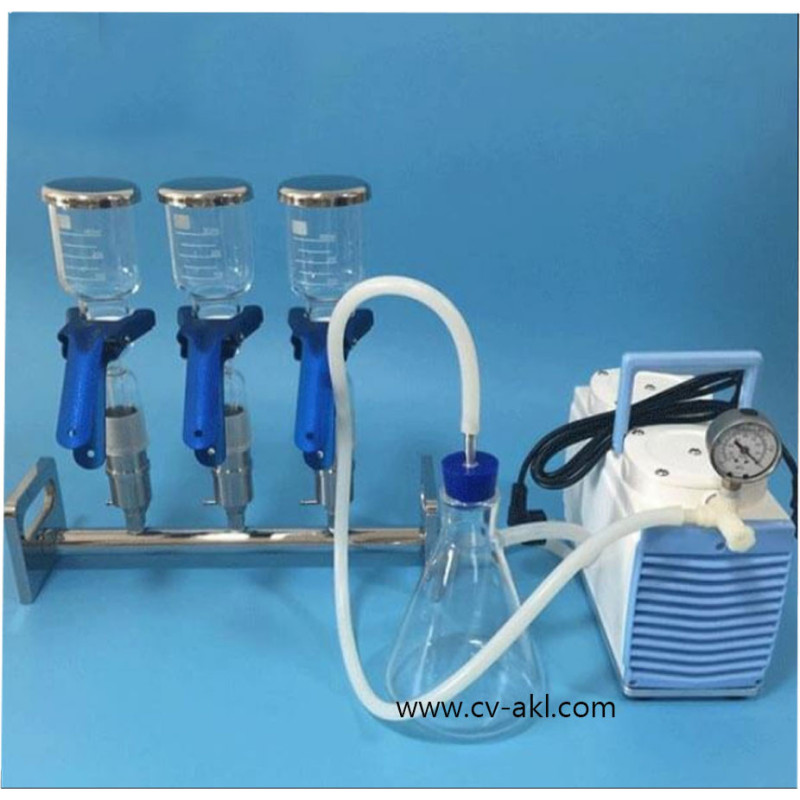

Three Branch Vacuum Filtration System 20L/min, M033A-3B

Rp0,00

Termasuk pajak

Three Branch Vacuum Filtration System 20L/min, M033A-3B terdiri Glass Vacuum Filtration Manifold with Diaphragm Vacuum Pump, Glass Funnel 300ml (bagian atas) dan Collection Bottle 1000ml (bagian Bawah), Kecepatan Vacuum Pump 20L/min merupakan alat laboratorium untuk proses pemisahan zat padat pada cairan atau proses penyaringan. Vacuum Filtration Set menggunakan penyaringan dengan kertas saring diameter 47mm, Distributor dan Penjual Vacuum Filtration Set di Indonesia

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Keterangan
Detail produk

Three Branch Vacuum Filtration System

Type : M033A-3B

Specification :

Glass Vacuum Filtration Manifold
▪	Type	:	SLT3001
▪	Branch	:	3-branchs
▪	Funnel Size	:	300 ml
▪	Funnel Valve	:	Glass
▪	Manifold Support	:	SS316L
▪	Support Screen	:	Pyrex Glass
▪	Membrane Filter (Diameter)	:	47 mm or 50 mm
▪	Screen Pore Size	:	10 µm
▪	Connection	:	Ground Joint
▪	Connection Bottle	:	1000 ml
▪	Working Temperature	:	under 180-200℃
Diaphragm Vacuum Pump
▪	Vacuum Pump Type	:	033A
▪	Speed of Evacuation (L/min)	:	20
▪	Ultimate Pressure Vacuum	:	≥0.08Mpa 200mbar
▪	Voltage Rating	:	230Vac 50Hz
▪	Motor Power (W)	:	160
▪	Inlet (mm)	:	Φ6
▪	Outlet (mm)	:	Silencer
▪	Pump Head	:	1
▪	Temp of body (℃）	:	<55
▪	Dimensions (LxBxH) (mm)	:	210x120x235
▪	Weight (Kgs)	:	7.5
▪	Diaphragm	:	NBR
▪	Valves	:	NBR
▪	Noise Level (DB)	:	<50
▪	Temperature of working (℃）	:	7 - 40
